Kensal Green Cemetery (also known as All Souls Cemetery)

www.historicengland.org.uk/listing/the-list

Opened in 1833, Kensal Green was the first of London's C19 commercial public cemeteries to be established, to a design by Richard Forrest

DESCRIPTION

LOCATION, AREA, BOUNDARIES, LANDFORM, SETTING

The 25ha site is situated in the west London suburb of Kensal Green, c 2km to the south-west of Kilburn, 1km north of North Kensington, and 1.5km south-east of Harlesden. The site, which is roughly rectangular with a narrow curving tail of land to the east, is bounded to the north by Harrow Road (A404) and the backs of the buildings of College Park which straddle the railway line that runs between Kensal Green and Willesden Junction. Ladbroke Grove provides the east boundary, and the Paddington branch of the Grand Union Canal the boundary to the south. The Roman Catholic Cemetery of St Mary's lies adjacent to the west, separated from Kensal Green Cemetery by a brick wall. The boundary to the north and east is defined by high brick walls while the canal is separated from the site partly by ivy-covered walls and partly by iron railings through which the canal, neighbouring gas works, superstore, and other industrial developments to the south can be seen.

The low-lying level site slopes gently from north-west to south-east and is traversed by tarmac, gravel, and grass paths, many surviving from the mid C19 design.

ENTRANCES AND APPROACHES

The main entrance to Kensal Green Cemetery is towards the eastern end of the site where the drive enters from Harrow Road, under a simple classical archway hung with tall double cast-iron gates (listed grade II*). Built of Portland stone, the archway, designed by John Griffith, is flanked by Doric columns with an early C20 neo-classical single-storey office on the west side. The semicircular brick-paved forecourt to the north is flanked by low evergreen hedges. A lesser entrance stands c 800m further to the west along Harrow Road. From here a tarmacked road leads south for 20m then divides, the western branch leading between lawns to the crematorium, the main drive continuing south through early C19 cast-iron gates hung from Portland stone piers (listed grade II) into the burial ground.

PRINCIPAL BUILDING

The Anglican chapel (listed grade II*) situated in the centre of the site is aligned on the Centre Avenue which extends eastwards from it. Designed in 1833 by John Griffith, the chapel, built of Portland stone and stucco in Greek Doric style with a tetrastyle portico, was completed by 1837. The flanking loggias have columns in antis between piers. A memorial chamber and catacombs are situated to the west of the loggias. There are corner and end pavilions, the latter containing memorial sculptures. The chapel was fitted with a hydraulic lift which lowered coffins directly from the chapel to the catacombs below.

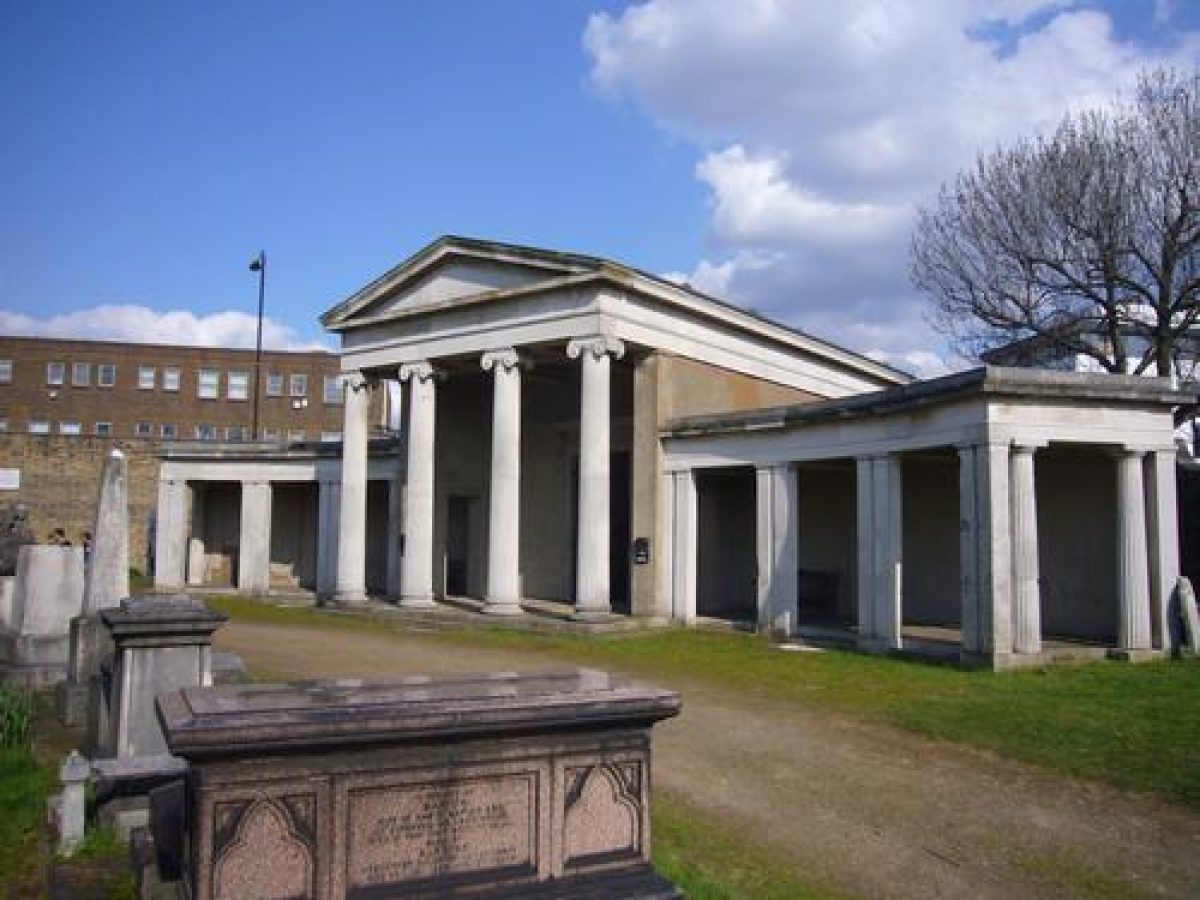

John Griffith also provided the design for the dissenters' mortuary chapel (built by 1834, listed grade II*) situated at the eastern tip of the site. The giant tetrastyle pedimented Ionic portico is divided into three bays and is flanked by curved quadrant wings. In 1997 the then ruinous building was the subject of an award-winning restoration and now (2000) houses a visitors' centre and the offices of the Friends of Kensal Green Cemetery.

GARDENS AND PLEASURE GROUNDS

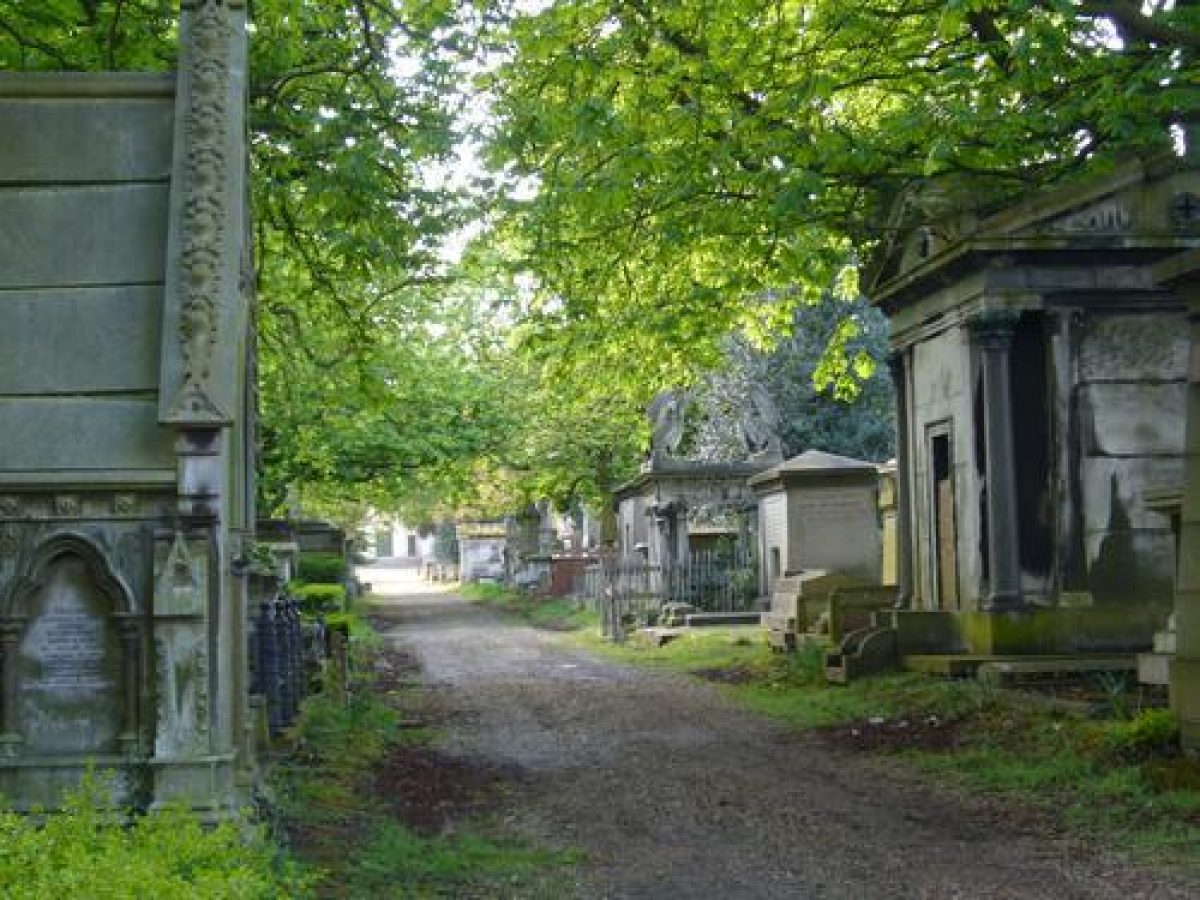

The basic design of the cemetery is as an informal landscape park with a number of formal features. From the main entrance the drive, bordered by wide grass verges decorated with cut beds, leads south for c 20m before dividing. The gravel path to the east encircles the dissenters' division of the cemetery, the non-conformist chapel lying at the south-east corner of the area. The entrance to the chapel, which is now enclosed within C20 iron railings, is from Ladbroke Grove to the east. From the chapel the path continues west for c 150m before dividing, a branch running west to follow the raised north bank of the canal and the main path returning north to meet with the pathway emitting from the main entrance. From this point a network of avenues and paths spread across the cemetery before linking up with the Terrace Avenue, which runs north/south to the east of the Anglican chapel. The paths include the North and South Avenues, which are set parallel to their respective boundaries, and the Centre Avenue which runs in an almost straight line from the main entrance for c 500m to the west, providing the main vista from the Anglican chapel. The Centre Avenue was originally (1832) planted with cedars of Lebanon but by 1834 these were already failing, probably due to the waterlogged condition of the ground, and the last of them died in 1838. Robert Maconochie, the cemetery's gardener had begun replacing them with silver firs, but in 1842 it was decided to abandon conifers and replant the avenue with horse chestnuts and other deciduous trees. Many of these have been replanted in the late C20. Not easily discernible now (2000) from the Terrace Avenue because of the large number of monuments, is Circle Avenue. Situated c 20m to the east of the Anglican chapel and made as part of the original design, the circle of ground within the Avenue is bisected from north to south by Centre Avenue and from east to west by Junction Avenue, the latter providing a link between the North and South Avenues. The major avenues, the clear lines of which have become blurred as pressure for space has led to burials encroaching into the paths, are also linked by many lesser gravel or grass paths.

Some 150m north of the Anglican chapel stand the Colonnade with its underlying catacombs (listed grade II). Built against the northern boundary wall as part of the original, 1833, design, the Colonnade is c 75m long with five bays and Greek Doric columns. The centre and ends are advanced.

To the west of the chapel, the West Centre Avenue leads 400m to the West London Crematorium. Added in 1939 by G Berkeley Willis the crematorium is built in cream brick in a classical idiom. To the south of the paved terrace and fountain court, which lie to the south of the crematorium building, is the memorial garden. Made in two levels connected by a paved central path, the garden is laid mainly to grass with standard rose trees and memorial plaques. In the southern area, to the west of the central path and running parallel to it, is an avenue of young trees. The memorial garden was designed in 1939 by Edward White of the firm of Milner White and Son and was one of the first public gardens to be planted with Russell lupins which had been introduced commercially in 1938.

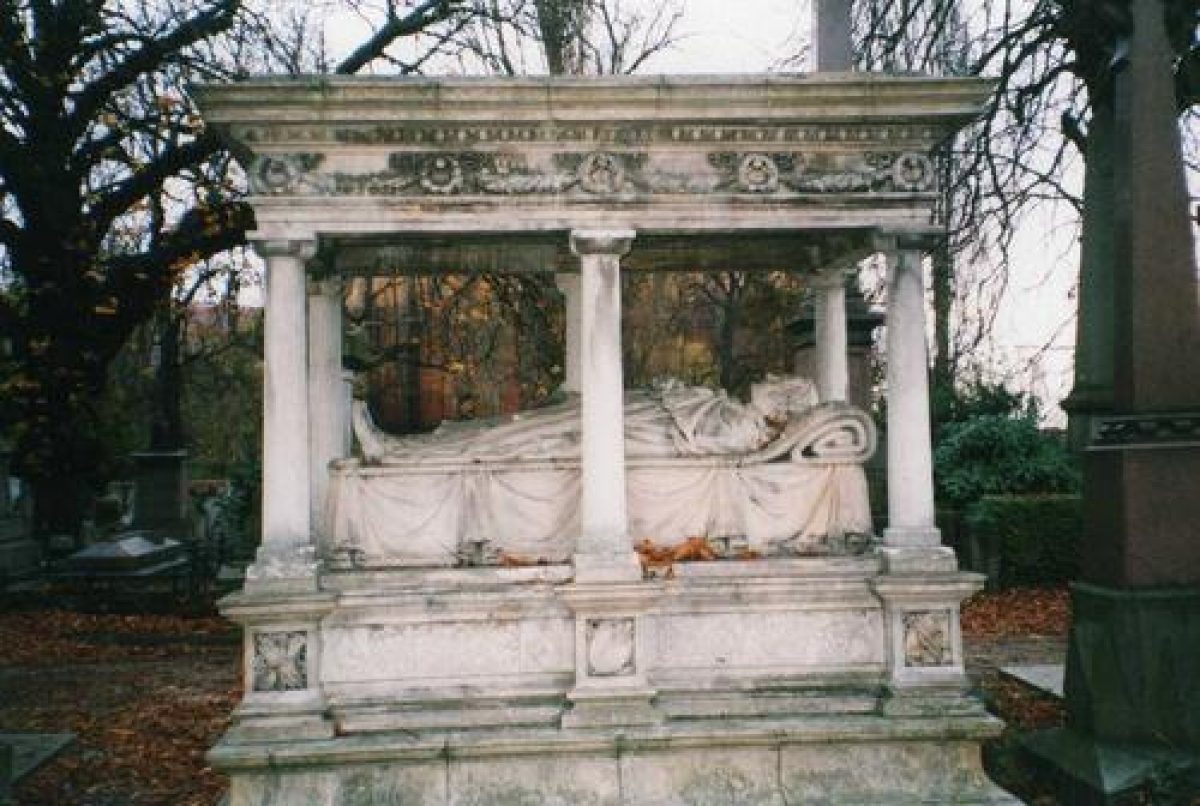

The monuments erected at Kensal Green Cemetery form a collection spanning the whole range of Victorian taste; they are rich in symbolism, diverse geologically, and distinguished in their architecture and sculptors. For details of individual tombs and monuments see Meller (1991).

REFERENCES

B Cherry and N Pevsner, The Buildings of England: London 3 North West (1991), pp 468-70

LCC, Survey of London XXXVII, (1973), pp 335-9

J S Curl, A Celebration of Death (1980), pp 214-23

H Meller, London Cemeteries (1981), pp 181-200

Landscape Design, (October 1989), pp 13-14

Kensal Green Cemetery, A Concise Introductory Guide and Select List of Notable Monuments, (Friends of Kensal Green Cemetery 1994)

B Elliot, Kensal Green Cemetery, (Introduction prepared for visit by English Heritage Gardens Committee, June 1996) [copy on EH file]

MAPS

Plan of All Souls Cemetery, 1833 (Kensington Library)

OS 6" to 1 mile: 3rd edition published 1916

OS 25" to 1 mile: 1st edition published 1867; 2nd edition published 1897

REASONS FOR DESIGNATION

Kensal Green Cemetery is included on the Register of Parks and Gardens of Special Historic Interest at Grade I for the following principal reasons:

* The cemetery is an early and influential example of a cemetery laid out in the garden or pleasure ground style (1833).

* The cemetery was the first to be established to serve London.

* The cemetery has an extensive and complex layout designed by Richard Forrest (fl 1820s-1840s) which survives intact.

* The cemetery contains a significant group of associated structures designed by John Griffith (1796-1888).

* The cemetery contains an outstanding collection of funerary monuments and mausolea which reflects the development of London during the C19.

* The site includes a crematorium (1939) by G Berekley Willis with a contemporary memorial garden designed by Edward White (1873-1952) of Milner White and Son.

Description written: July 2000

Edited: January 2002

Upgraded: 2009
