Audley End

The following is from the Register of Parks and Gardens of Special Historic Interest. For the most up-to-date Register entry, please visit The National Heritage List for England (NHLE):

A house of C17 origins beside a mid C19 parterre garden, with pleasure grounds by Richard Woods, surrounded by an C18 park conceived and partly laid out by Lancelot Brown between 1762 and 1767.

Location, Area, Boundaries, Landform and Setting

Audley End occupies a rural setting immediately to the west of the Essex town of Saffron Walden. The irregularly shaped c 240ha site is bounded to the north-east by Windmill Hill, to the east by properties on the edge of Saffron Walden, to the south partly by an early C17 wall (listed grade II*) along Audley End Road, and partly by the estate village of Audley End, the River Cam, and Gamages Wood. The boundaries to the west and north-west are formed by farmland. The village of Littlebury lies just beyond the north-west corner of the park. The ground at Audley End slopes down from east and west towards the winding course of the River Cam, which flows from south to north through the park. Audley End House stands c 300m to the east of the river, with rising ground further to the east. There are extensive views into and out of the site, particularly from the road which runs through the park to the west of the Cam.

Entrances and Approaches

The main approach to Audley End enters the park c 150m to the south-west of the House via the Lion Gate (dated 1616, remodelled 1786, listed grade II*), built of plaster-rendered brick with a carved Coade stone lion over the central arch, standing beside the Lion Lodge (also known as Main Gate or Audley End Lodge). Lion Lodge (listed grade II), built of red brick with stone dressings in the Elizabethan style, was added in 1834 by Thomas Rickman.

The drive curves north-east to arrive at the west front of the House. A secondary drive enters the park c 400m to the north-west of the House. Gates and gate piers (listed grade II) stand on the London Road beside Cambridge Lodge (listed grade II) which was built of red brick in the Jacobean style in 1834 by Thomas Rickman. The drive runs east past the late C16 stables and crosses the River Cam via the Stable Bridge (listed grade II) to arrive at the west front.

There are several further lodges on the boundaries of the estate which are not connected to drives. They are Icehouse Lodge and gateway (mid C19, listed grade II) c 600m east-south-east of the House, Nursery Lodge (listed grade II) c 650m to the north-west of the House, Walden Lodge (C19, listed grade II) c 900m to the east-north-east of the House, Swan Lodge c 1.1km north-east of the House, the 'Tudor-style' Northend Lodge (mid C19, listed grade II) 1km to the north-north-west of the House, Gamages Lodge (listed grade II) c 850m south-south-west of the House, and London Lodge, c 400 west of Gamage's. Keeper's Lodge, c 1.35km west-south-west of the House on the westernmost edge of the park was estate cottages rather than a park lodge.

Principal Building

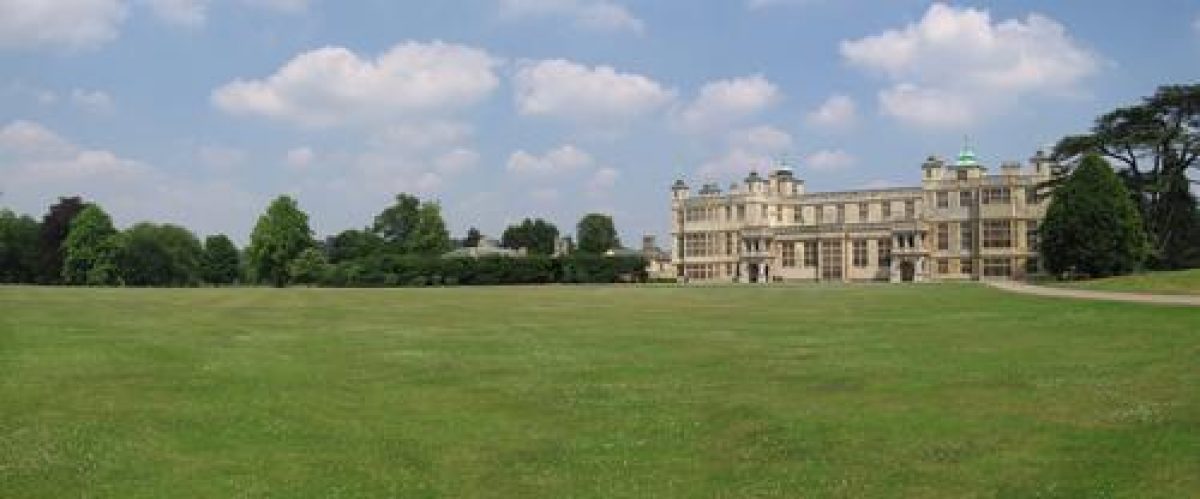

Audley End House (listed grade I) is part of a palatial country house of faced ashlar under lead roofs. It is built to a U-shaped plan in three storeys with mullioned windows and parapets to hide the roof line. It was first built between 1605 and 1614 by John Thorpe, Earl of Northampton with Bernard Janssen, mason, for Thomas Howard, first Earl of Suffolk. Reduced in size and remodelled on several occasions, particularly by Sir John Vanburgh in 1721 including demolition of the decaying outer court; by John Phillips and George Shakespeare in c 1752 including the demolition of the east wing and parts of the north and south wings for Lady Portsmouth; reconstruction and repair work in two phases from 1763 onwards for Sir John Griffin Griffin, including the addition of the kitchen court c 1762(87 and work by Robert Adam in the 1770s; and restoration work by Henry Harrison for the third Lord Braybrooke in c 1825(6.

The late C16 stable block (listed grade I) lies c 300m to the north-west of Audley End House. It is built of red brick and has gabled wings extending from the centre and the north and south ends of the range.

Gardens and Pleasure Grounds

The garden lies to the south and east of the House. It is enclosed to the north and east by a ha-ha (Lancelot Brown mid C18) and is bounded to the south by a high red-brick wall (listed grade II), part of which survives from the early C17 formal garden where the Mount Garden was situated. The Mount Garden was altered by Lancelot Brown in the mid C18 and was laid out in its present form of undulating lawns leading to paths through trees and shrubberies in the 1830s.

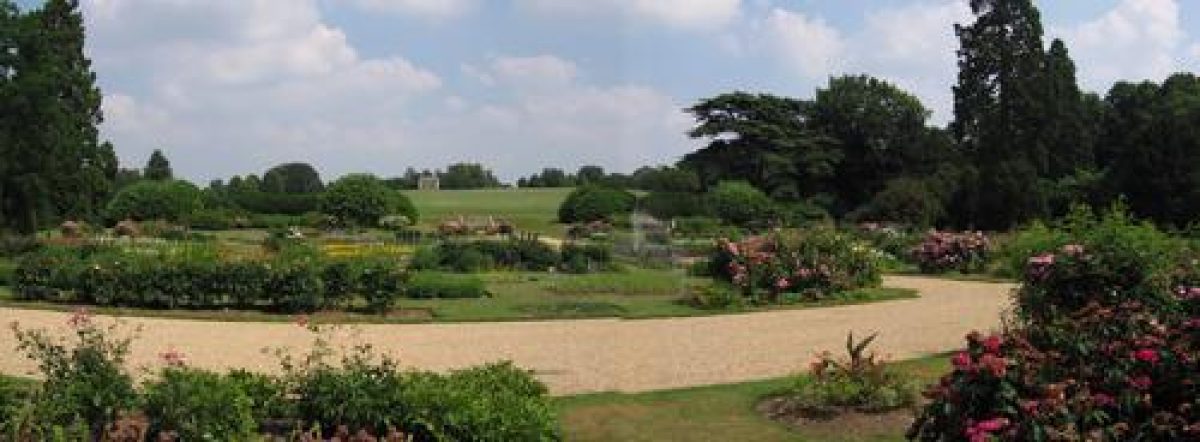

Below the east front is a complex flower parterre cut into a lawn, with central basin and fountain. The eastern boundary of the garden is formed by a raised walk (steps listed grade II) running alongside the ha-ha, which gives views back over the parterre and out into the park. The parterre garden stands on the site of the C17 bowling green, which was remodelled by Lancelot Brown in the C18 to create an informal flower garden. The parterre, which is based on an C18 pattern book, was started in c 1831 by the third Lord Braybrooke, who had received advice on its layout from William Sawrey Gilpin (guidebook 1995). It was restored by English Heritage in the 1980s.

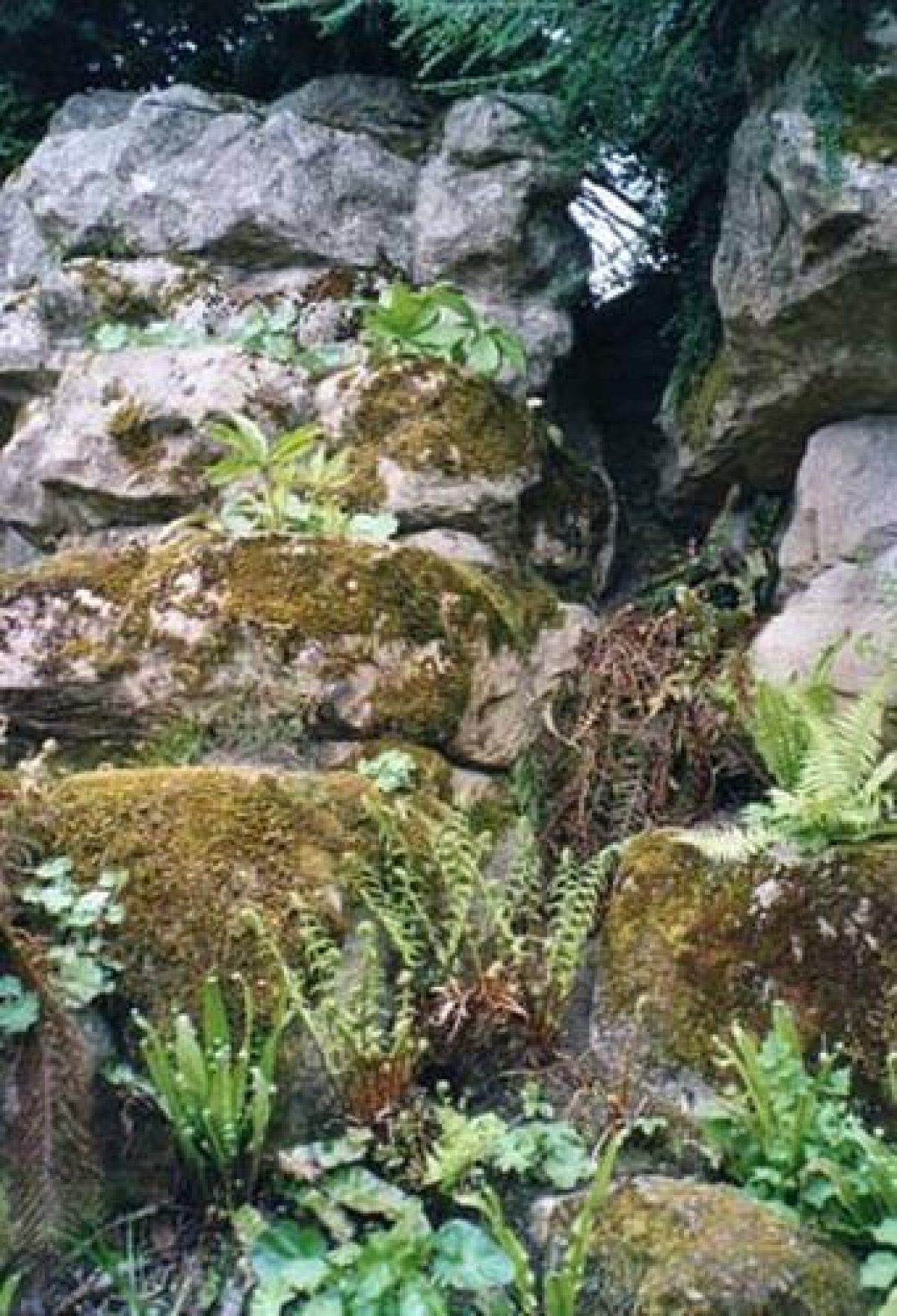

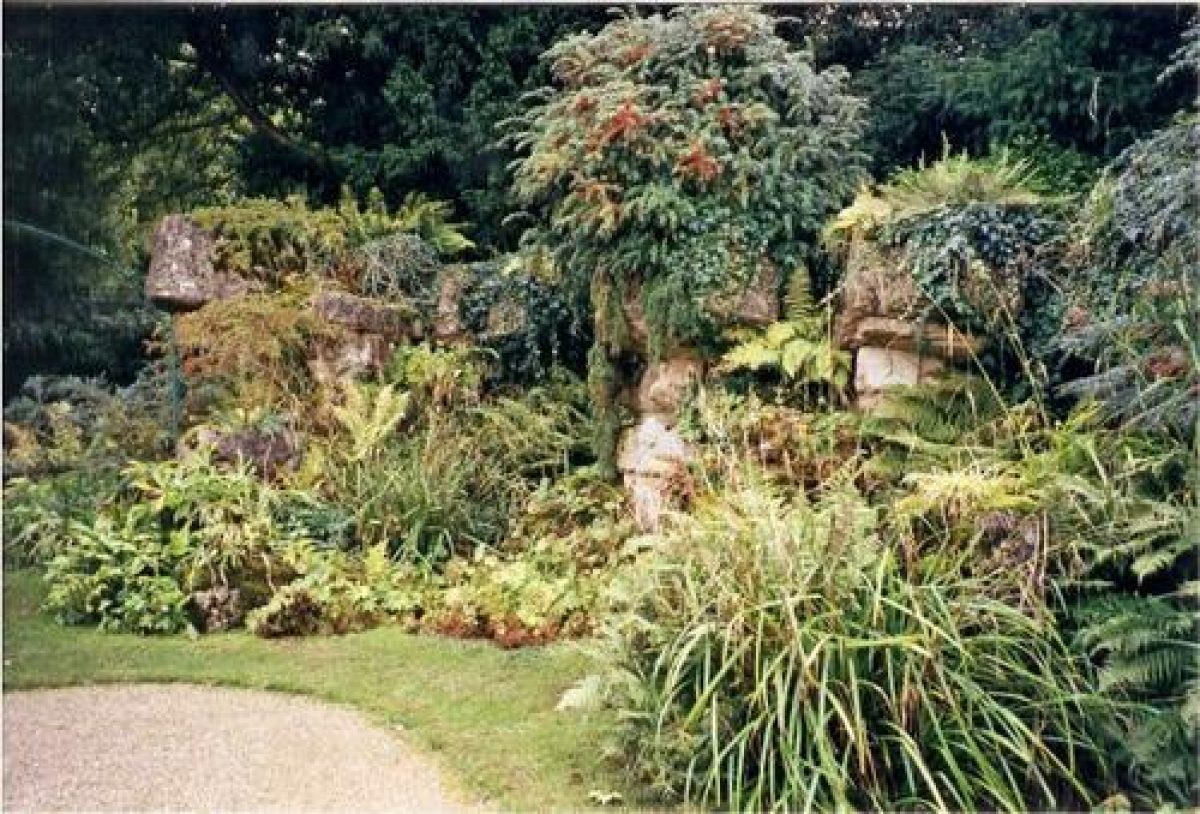

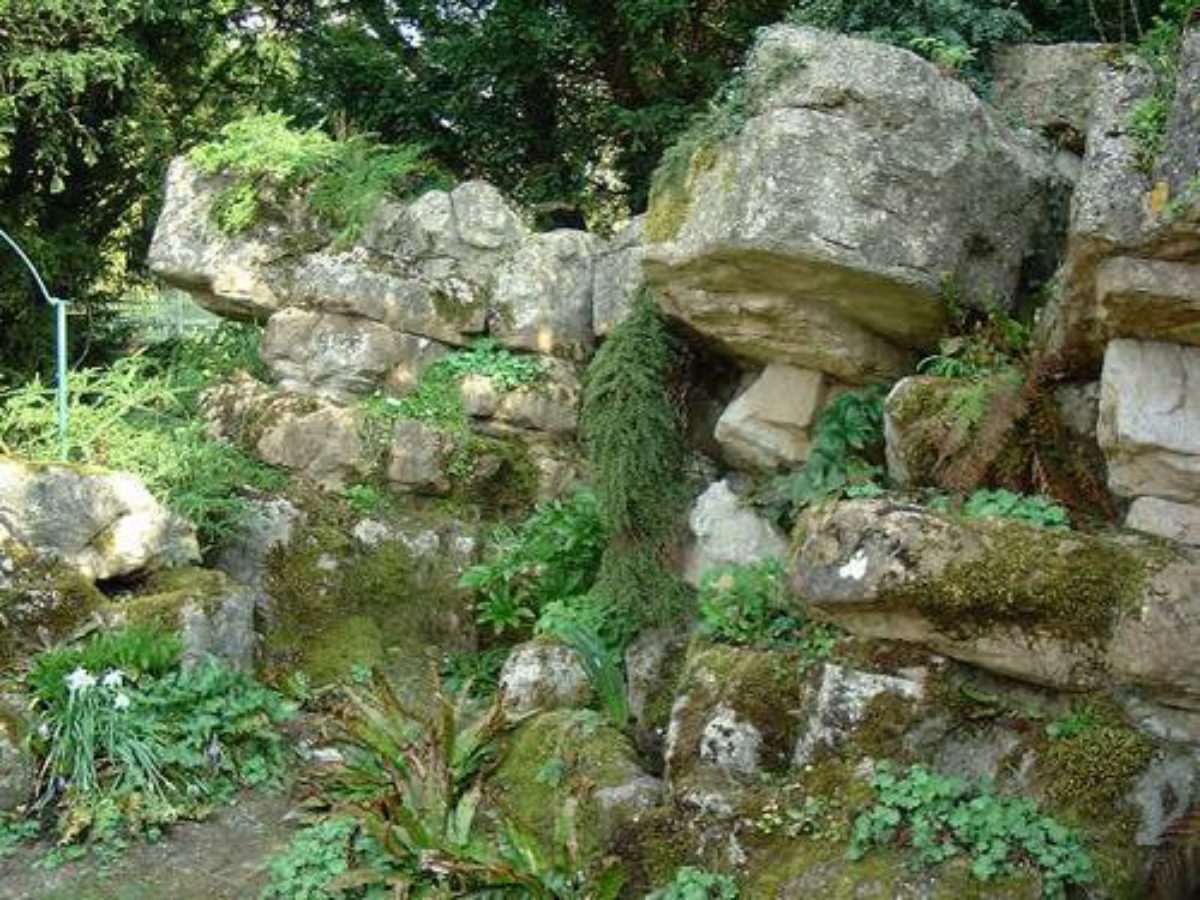

Two further garden areas lies detached from the House, c 350m to the north-west outside the east wall of the kitchen garden. Between the River Cam and the east wall of the kitchen garden lies the Pond Garden. Wrought-iron hoops clad with roses run beside a gravel path along the banks of the river overlooking small areas of lawn cut with flower beds. The Garden contains a rockery at its southern end and two square stone ponds, the Otter Pond and the Fish Pond, all of which were constructed by James Pulham and Son in the mid C19 for the sixth Lord Braybrooke.

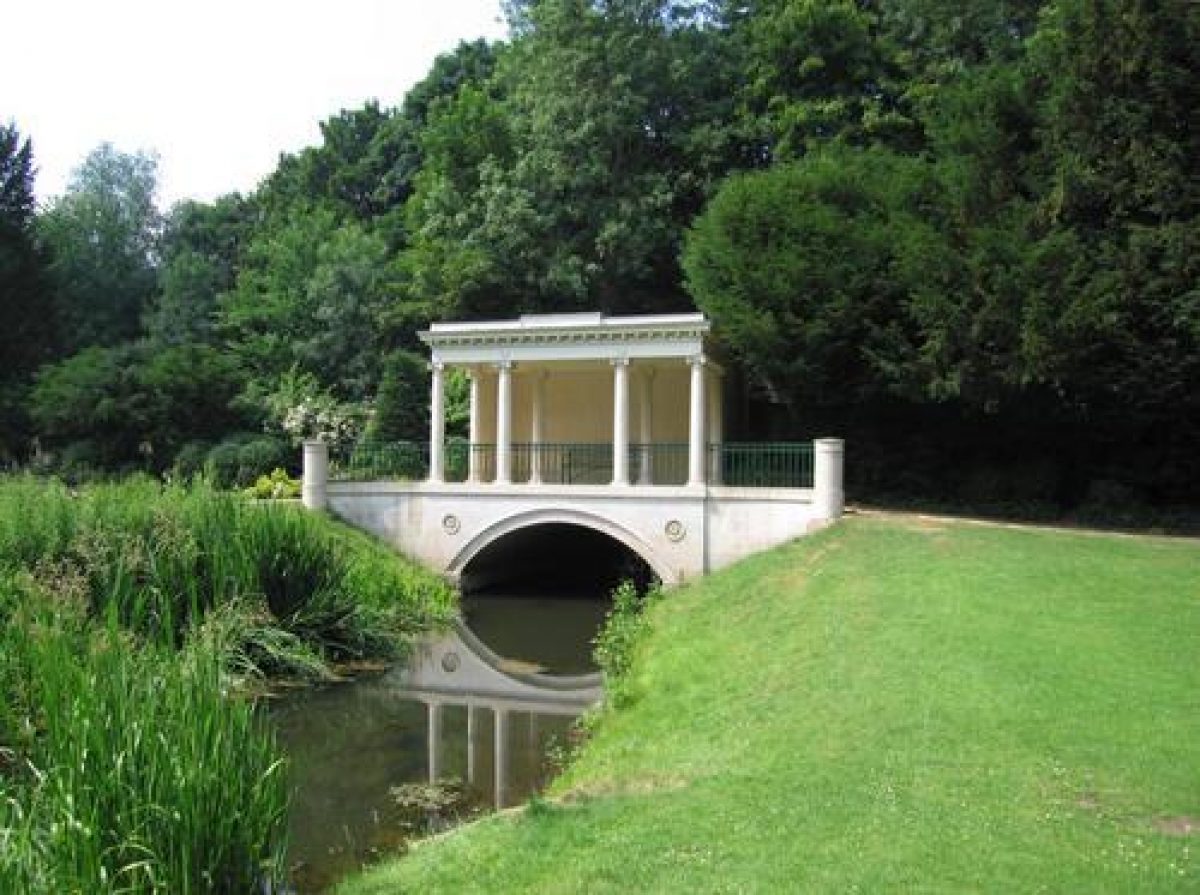

From the Pond Garden a footbridge over the River Cam leads east into the Elysian Garden, laid out as a walk on either side of the Cam. The bridge runs over the top of a cascade (Richard Woods 1770s) which drops the water of the Cam into a lower section on the north side of the bridge. The Elysian Garden runs up to the boundary of the park and where the Cam leaves the garden the river is crossed once again, at this point by the Palladian Tea Bridge (listed grade I), built of brick clad with ashlar stone in c 1780 by Robert Adam. This area was detailed in the early 1780s by Placido Columbani to a design by the Essex landscaper Richard Woods and featured elaborate gateways, temples, and statues along a walk decorated with flower beds. The Garden proved to be a frost trap however and the borders were grassed over in the 1830s when a number of the structures were demolished.

Park

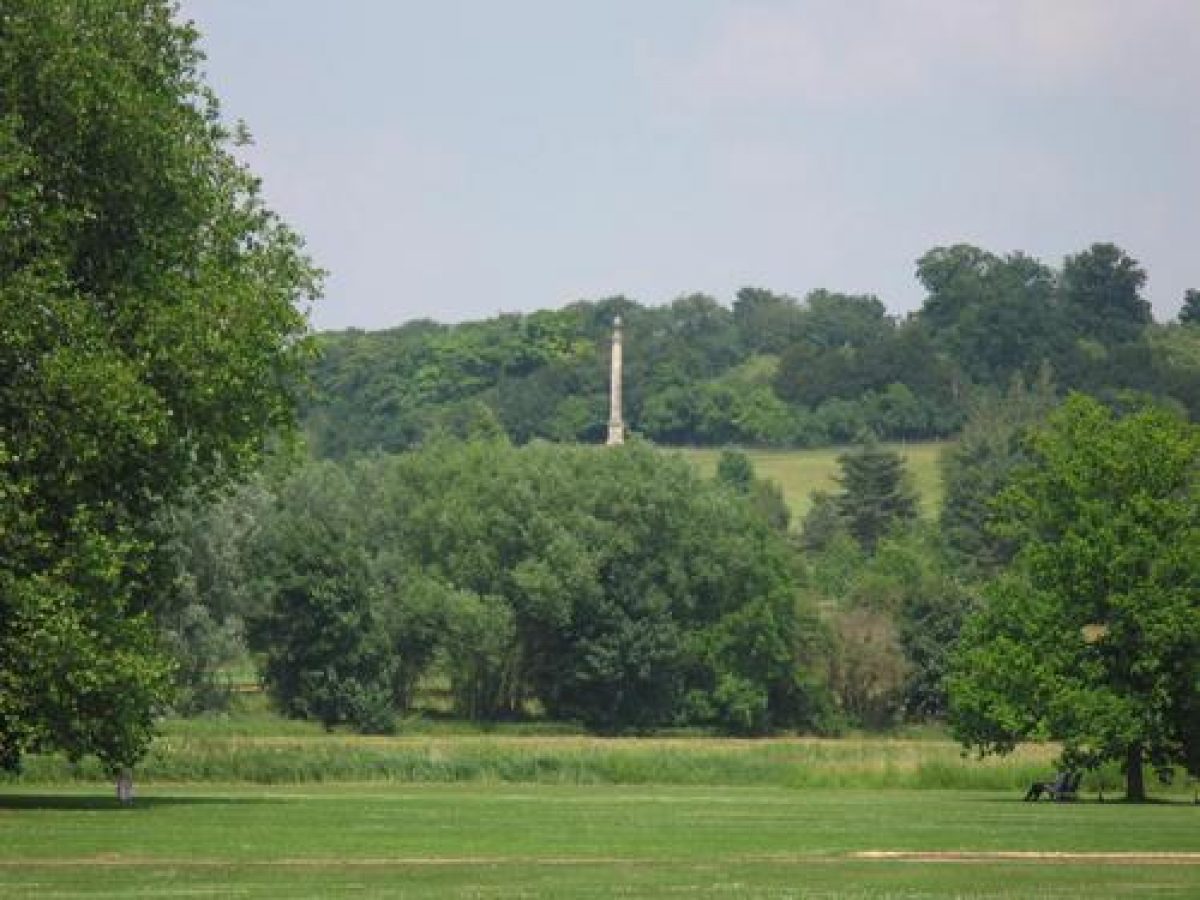

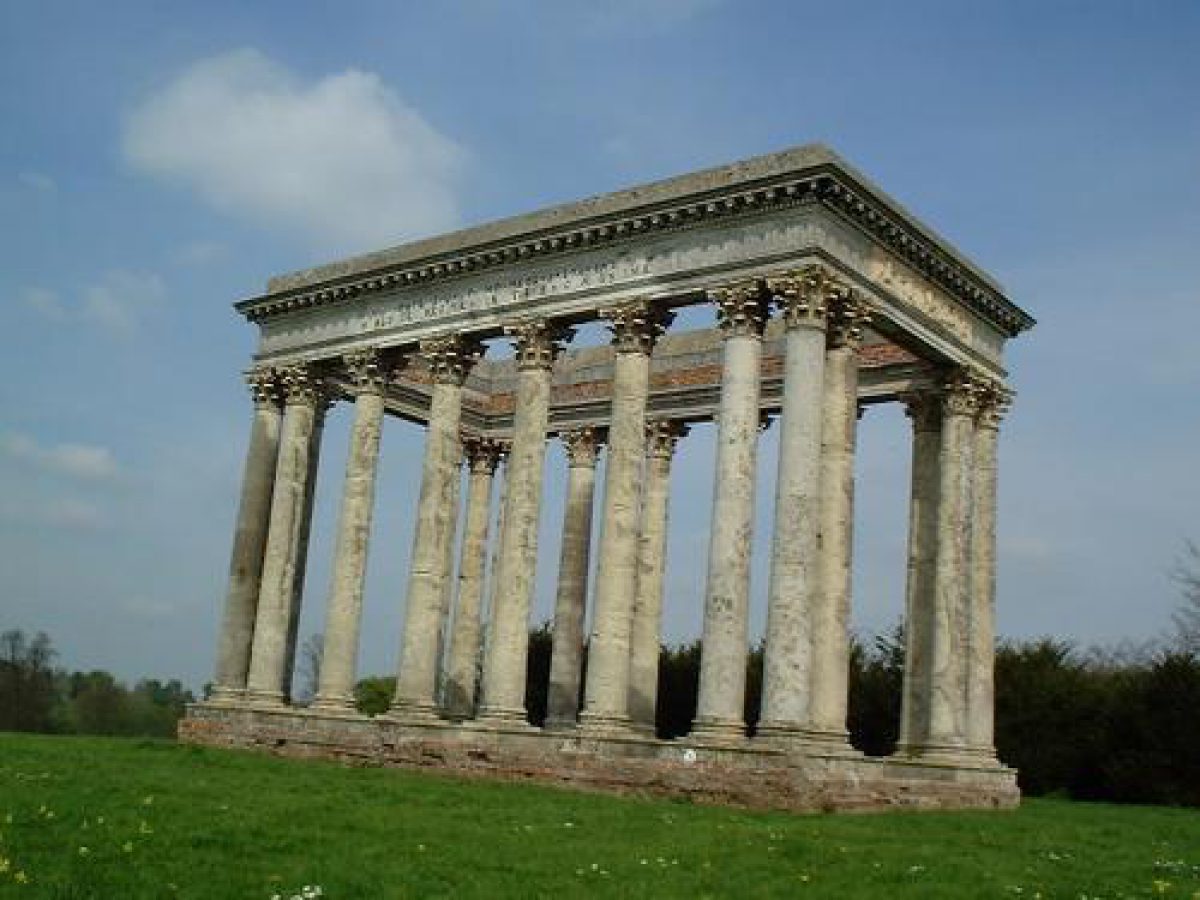

The park at Audley End extends to the west, south-west, east, and north-east of the House and is bounded by belts of trees. The north-east quarter is partly wooded and partly open and is currently (2000) used as a golf course. It contains an obelisk (listed grade II*) located c 800m north-north-east of the House, designed by Robert Adam in 1763 and erected in 1774 as an eyecatcher against Spring Wood. To the east of Audley End House is open parkland well scattered with mature trees. The brick, stone, and Coade Temple of Concord (listed grade II*) which stands c 400m east of the House was designed by R W Brettingham in 1790 in the open park conceived by Lancelot Brown some thirty years before.

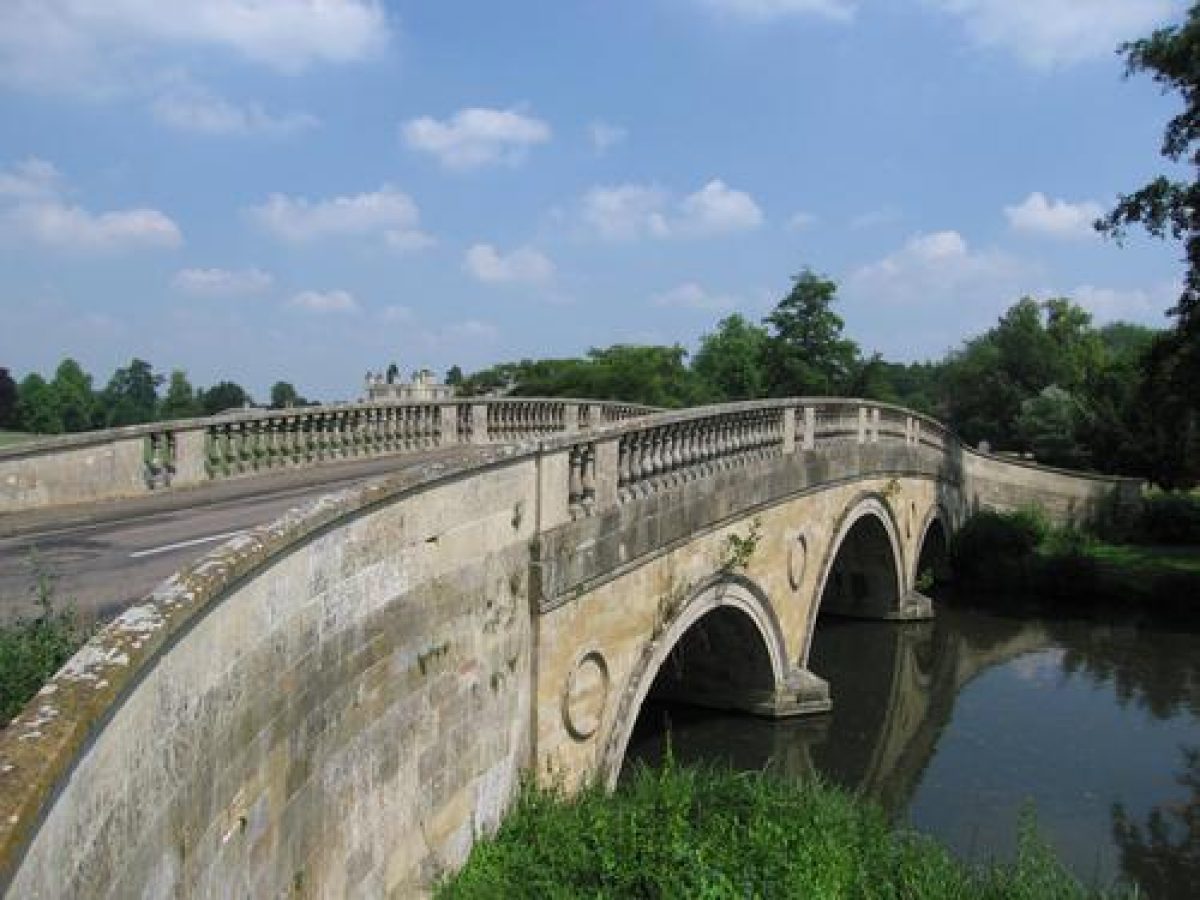

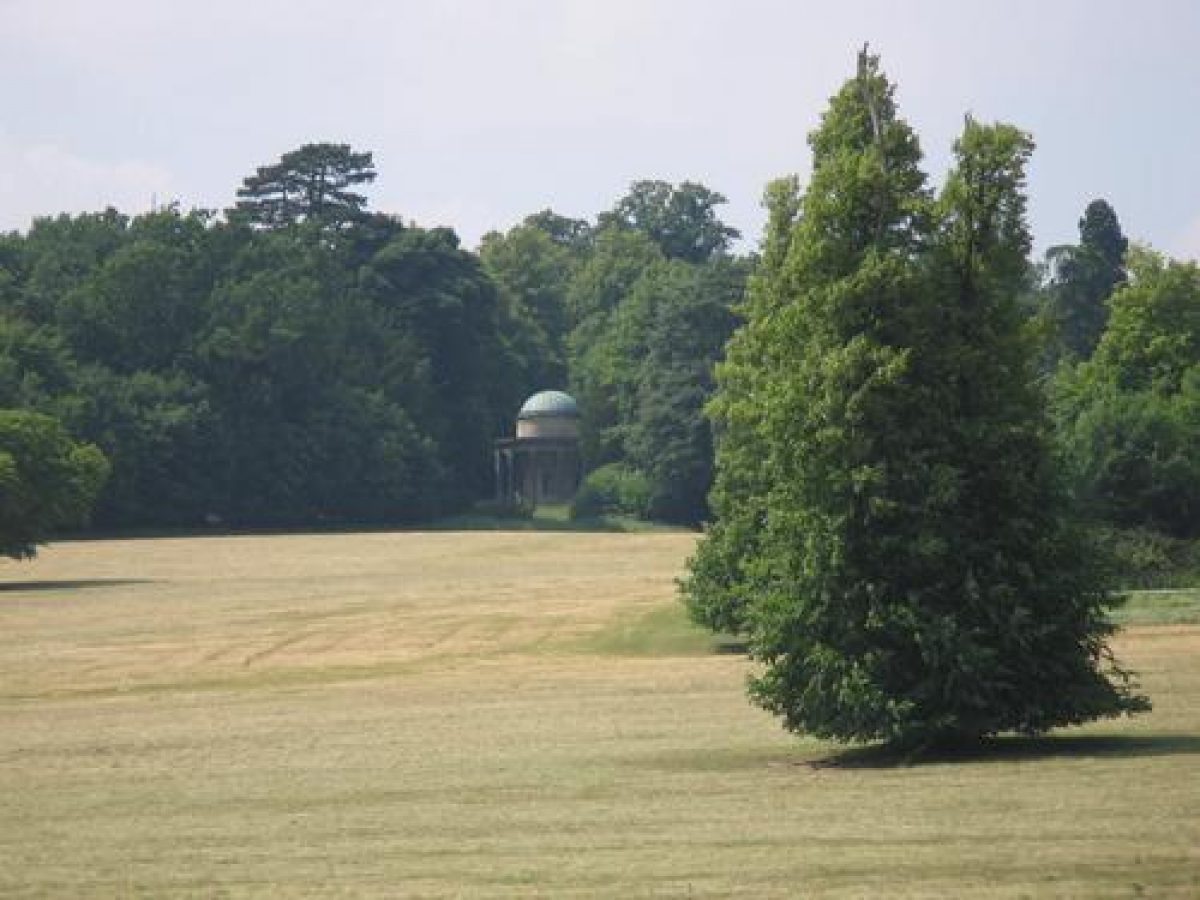

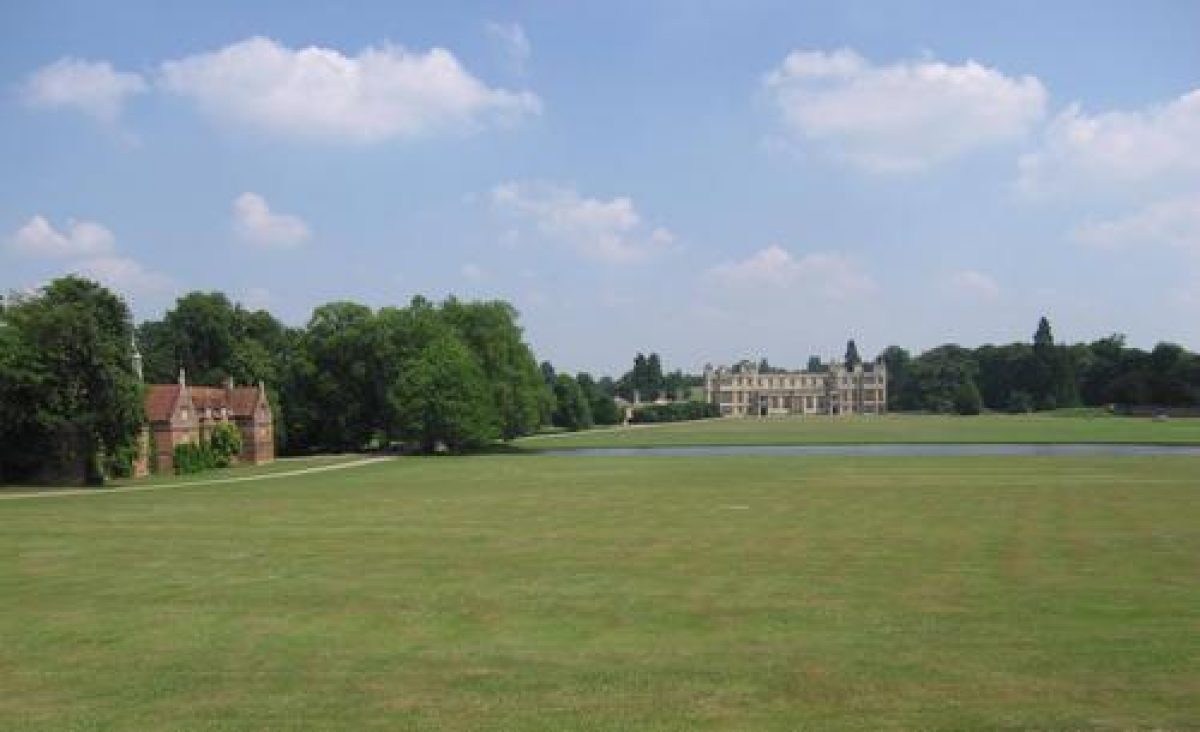

An open level lawn off the west front leads to the banks of the River Cam which was widened by Brown in the mid C18 to form a sinuous lake. It is crossed by a three-arch bridge (listed grade I) c 300m west-south-west of the House, designed by Robert Adam and erected in 1764 (altered in 1784). Beyond the Cam the west park, divided from the House by the London Road, rises up to Ring Hill, at the summit of which stands the Temple of Victory (listed grade II*), c 1km west-north-west of the House. It was built by Robert Adam in 1772 to complete Lancelot Brown's western prospect and gives fine panoramic views to the east. Ring Hill is flanked to north and south by woodland belts which flow down the slope of the park and help to focus the view.

South of the three-arch bridge, to the south-south-west of the House much of the park is covered by Gamage's Wood, the northern end of which contains a C20 miniature railway.

Kitchen Garden

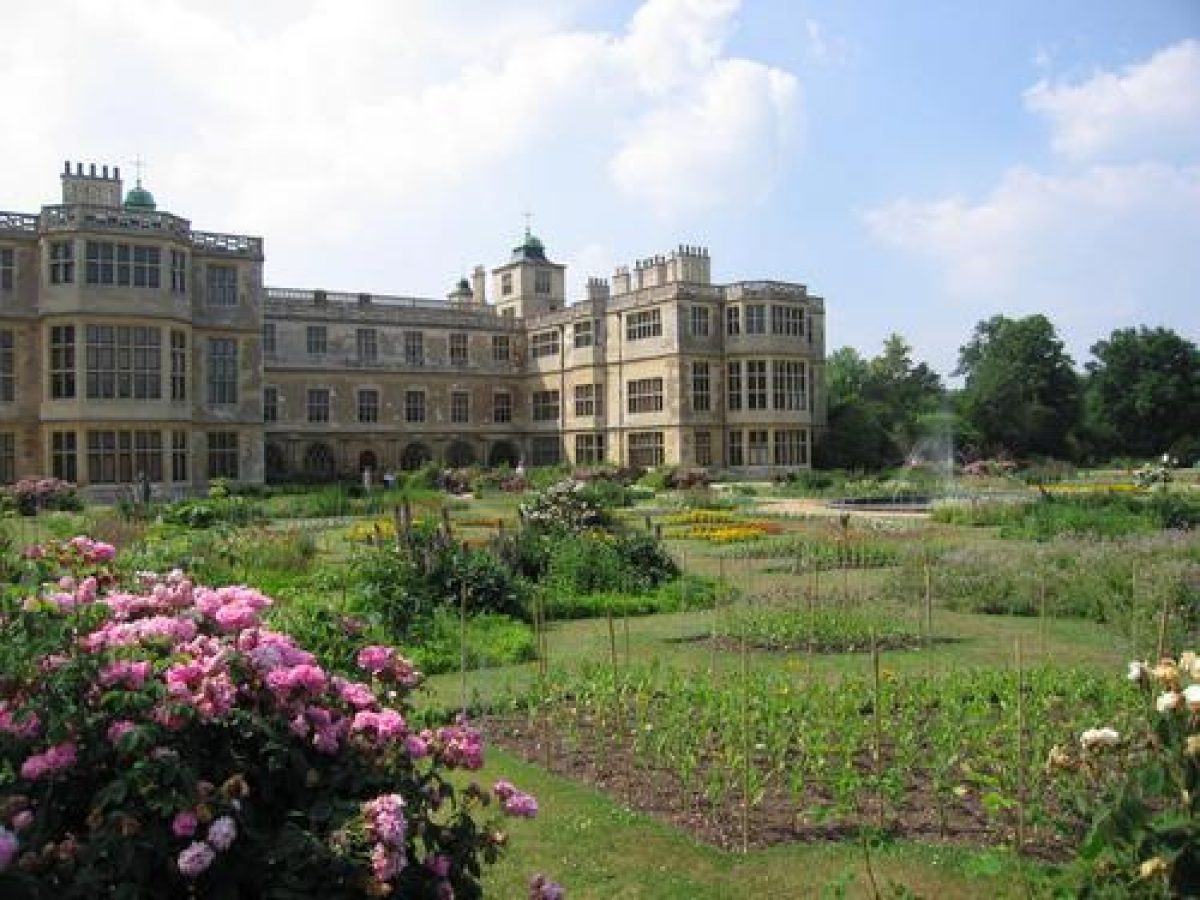

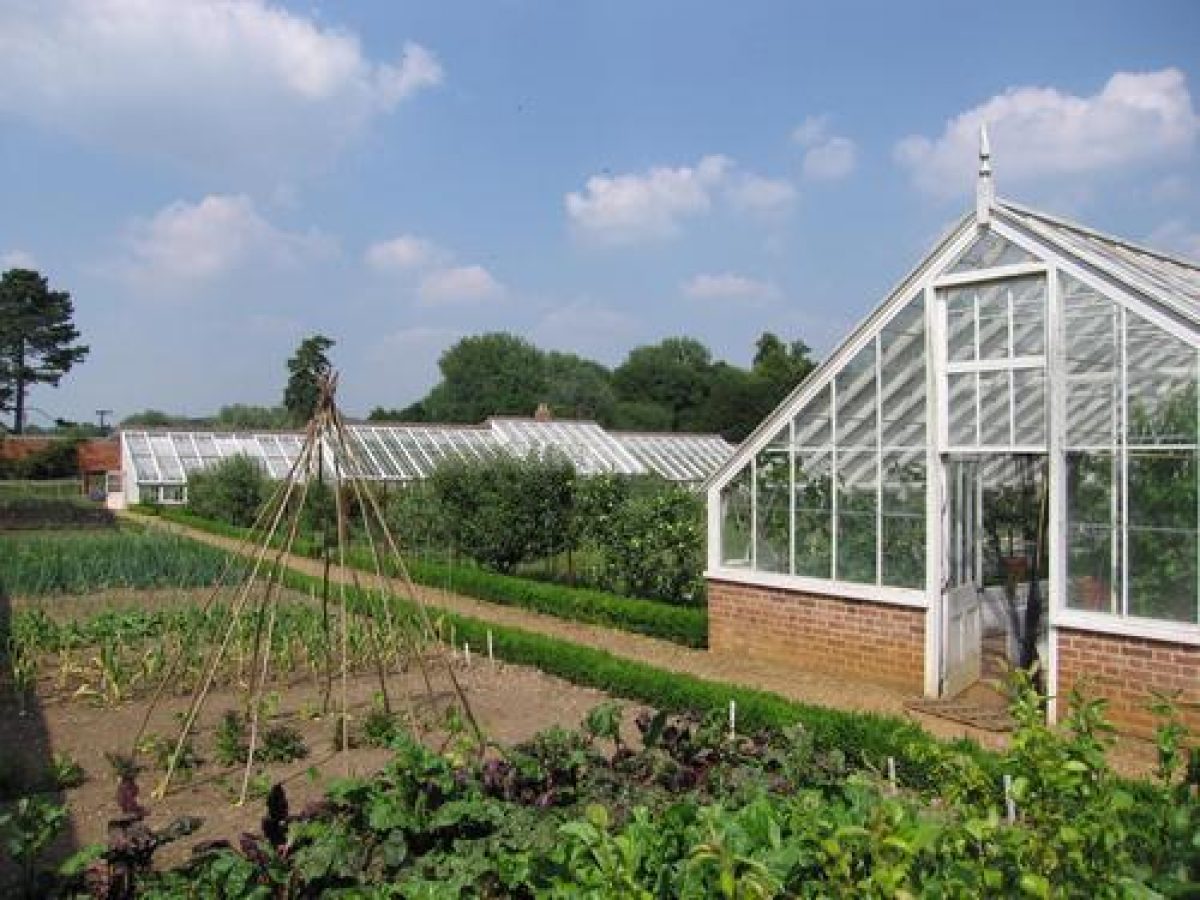

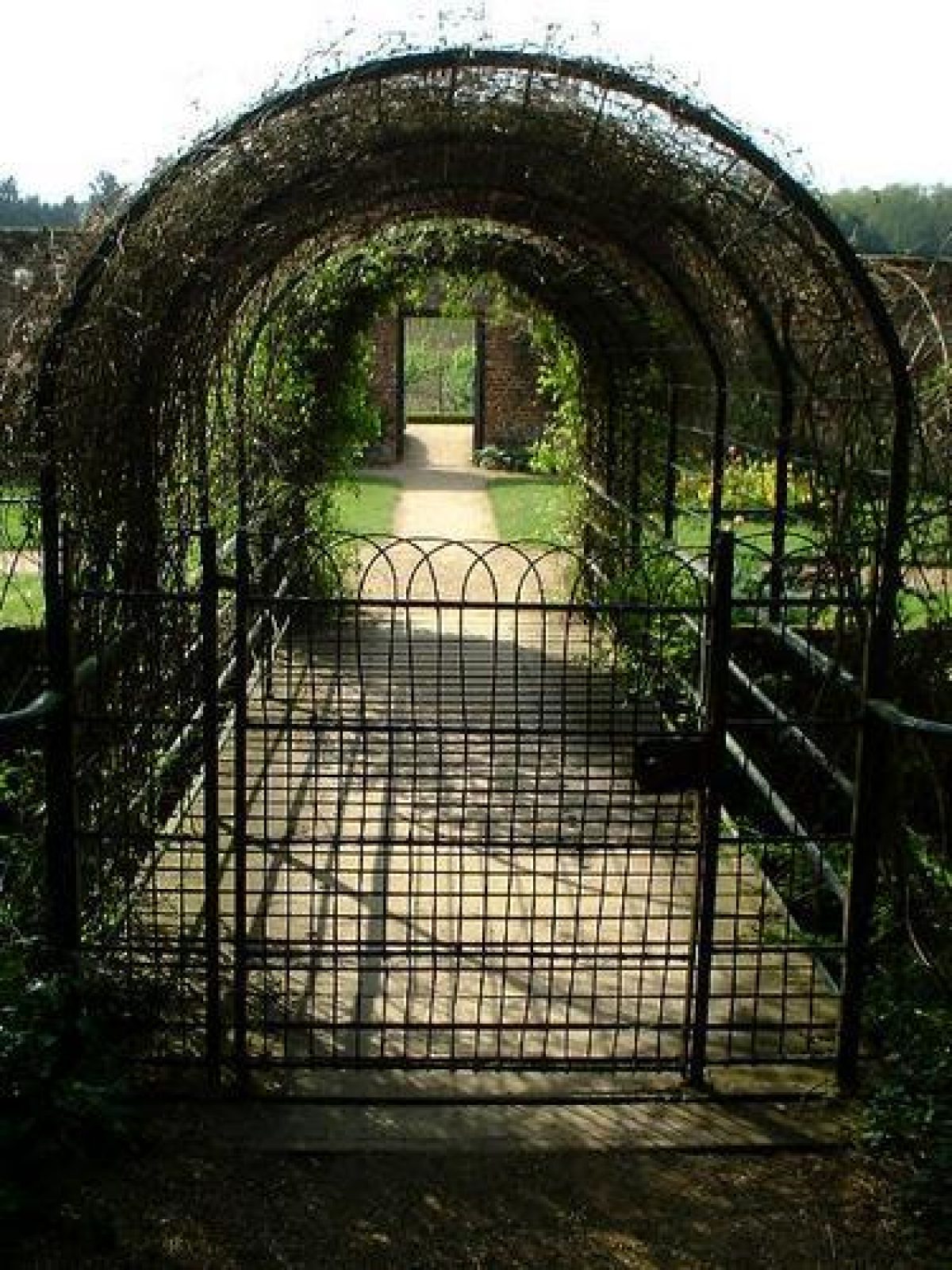

The walled kitchen garden lies c 350m to the north-west of Audley End House. It contains four enclosures and has partly been restored to its C19 form (2000). An early C19 vine house survives in one of the compartments. The walled gardens were established in the 1750s by the Countess of Portsmouth and extended in 1768 by Sir John Griffin Griffin who added glasshouses and an orangery. These were demolished in 1802 when the vine house was built.

References

• Country Life, 59 (19 June 1926), pp 872-9; (26 June 1926), pp 916-24; 60 (17 July 1926), pp 94-101; (24 July 1926), pp 128-36
• D Stroud, Capability Brown (1975), pp 113-14
• J Harris, The Artist and the Country House (1979), p 101
• N Pevsner and E Radcliffe, The Buildings of England: Essex (1979), pp 61-5
• Architectural History, (1980), pp 1-39
• Garden History XV, 1 (1987), pp 44-6
• M Sutherill, The Gardens of Audley End (1995) Audley End, guidebook, (English Heritage 1997)

Maps

• N Dubois (?), Scheme for alterations to house and garden at Audley End, c 1725 (DD/BY/P1), (Essex Record Office)
• C Bridgeman (?), Plan for Audley End, nd (Bodleian Library Gough Drawings A4 Fol 67R)
• E J Eyre, Plan of Audley End park, house and gardens, 1757 (private collection)
• T Warren, Survey of Audley End, 1783 (D/DQ/Y/8), (Essex Record Office)

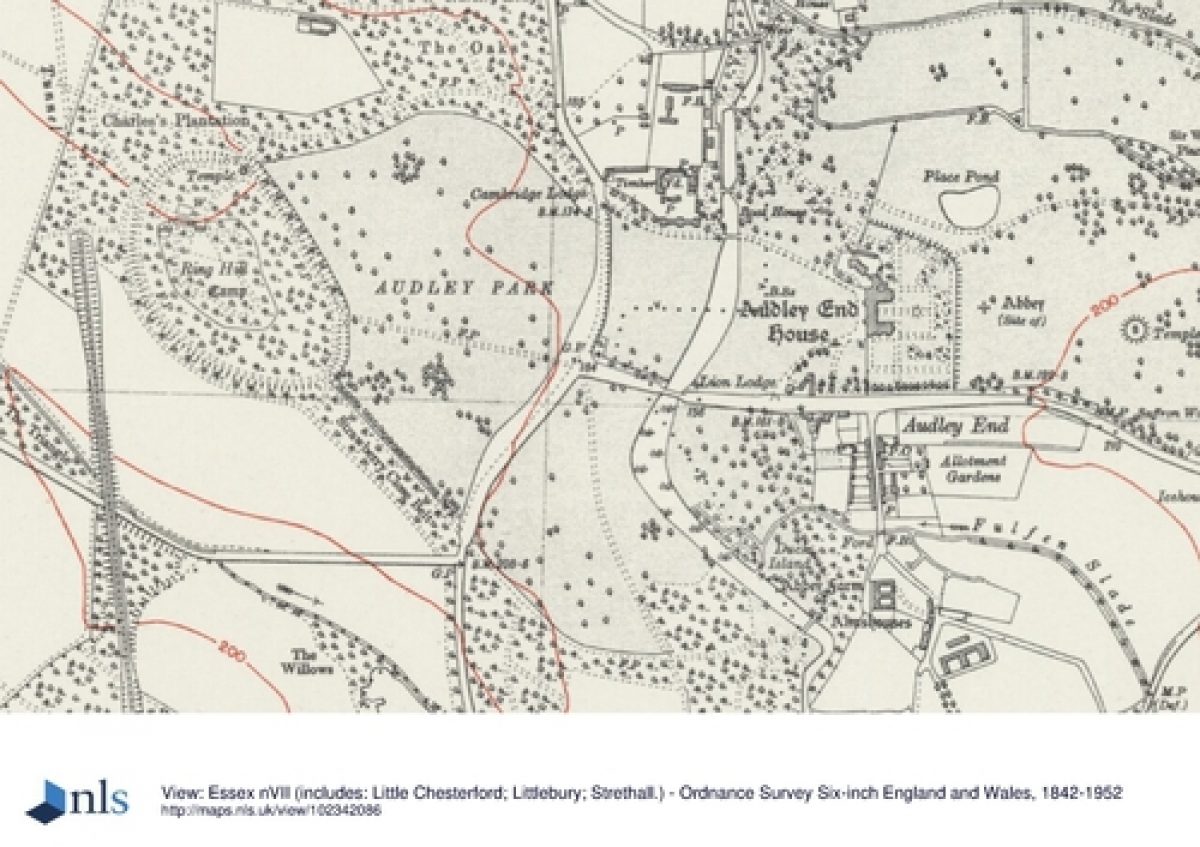

• OS 6" to 1 mile:

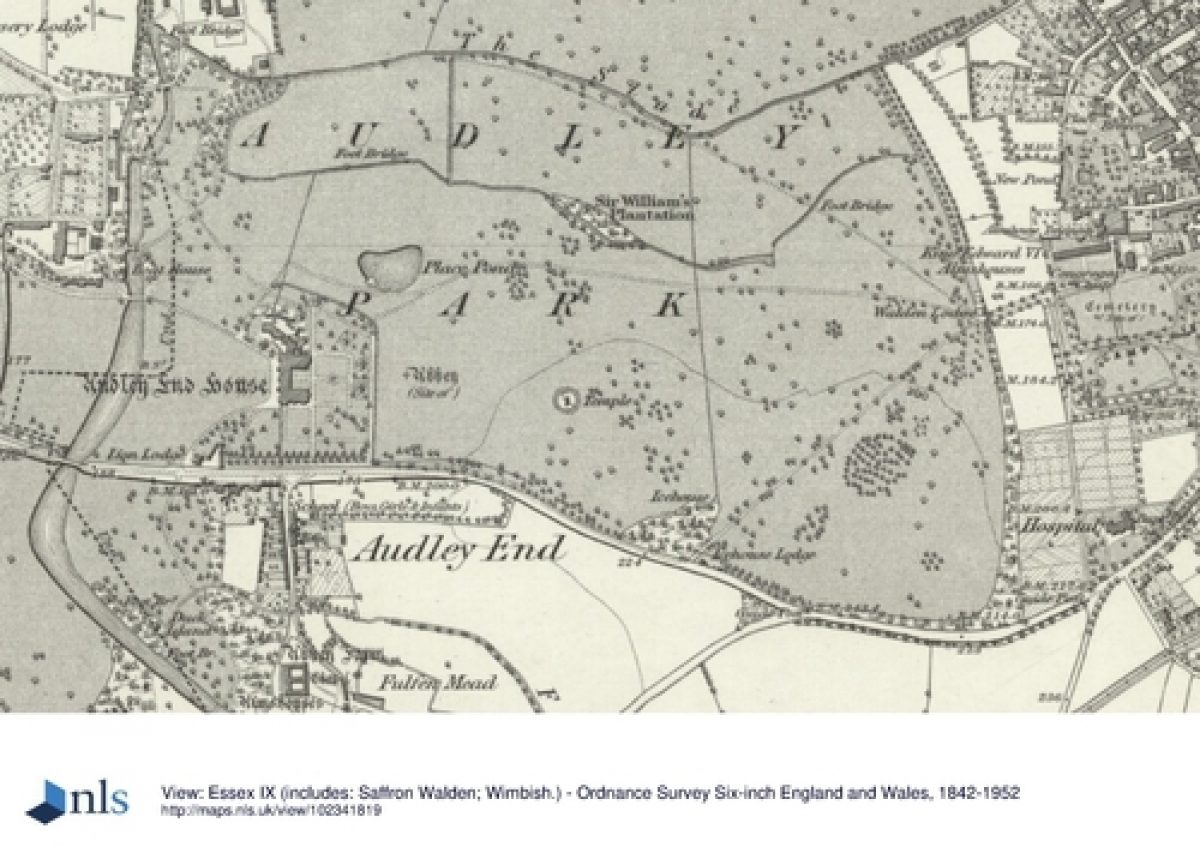

• 1st edition published 1881
• 2nd edition published 1898
• OS 25" to 1 mile:
• 2nd edition published 1897
• 3rd edition published 1921

Archival items

• The Audley End archives, with many plans including those by Brown and Woods, are held in a private collection.

Description written: January 2001

Amended: April 2001

Register Inspector: EMP

Edited: September 2001
